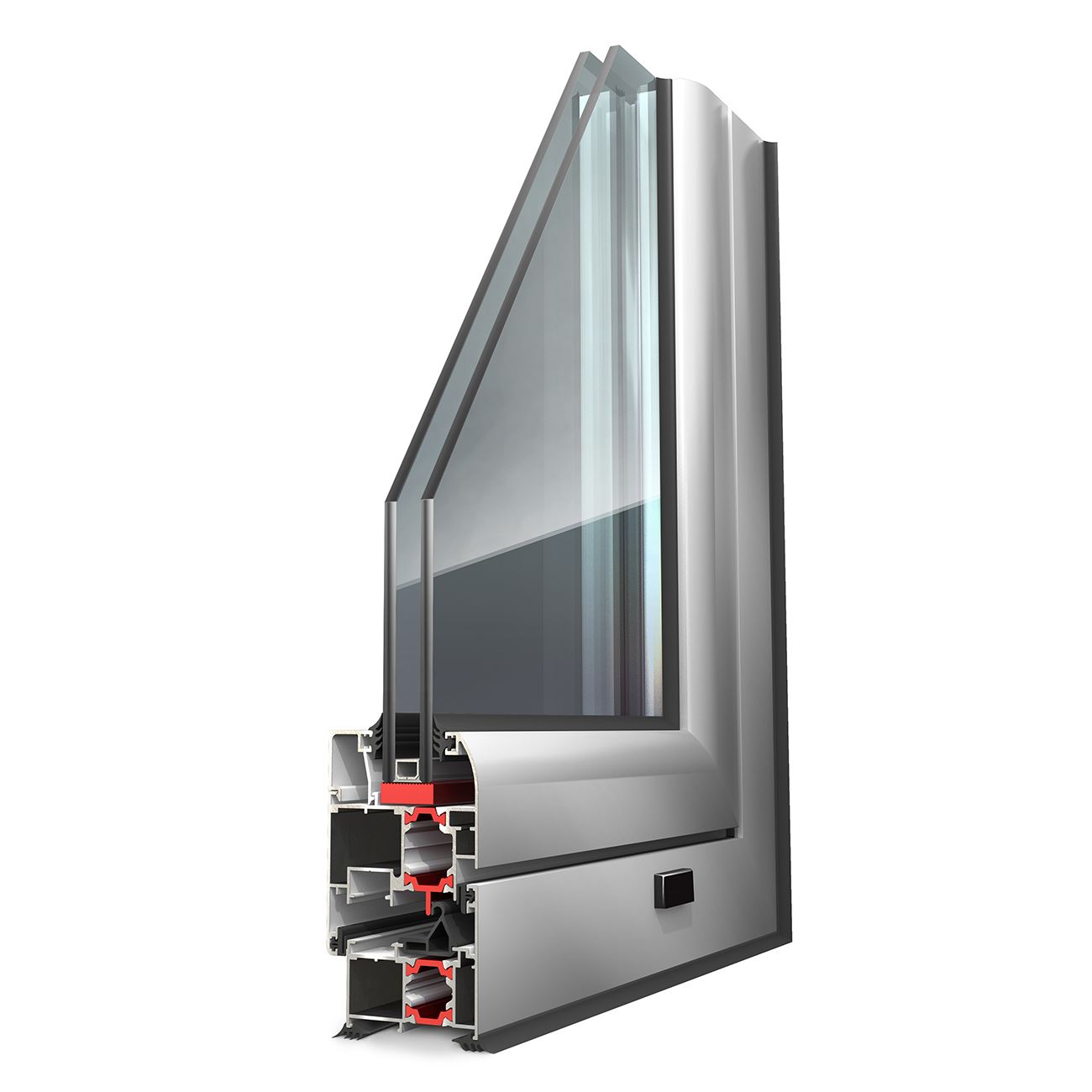

ALBIO 120C
Description:
Albio 120 is a thermal-break opening system combining small profile dimensions with good Thernal Transmittance. The precise profile assembly and the design simplicity complete the advantages of the series.
To view or to download the systems' technical catalogues, you must be a registered user. To register click
Αν δεν έχετε λογαριασμό, μπορείτε να δημιουργήσετε πατώντας Δημιουργία λογαριασμού:
Interest Enquiry -
1Aluminum Alloy:EN AW 6060Τ6, EN 15088:2005
-
2Powder coating:According to the European standard Qualicoat
-
3Anodising:According to the European standard Qualanod
-
4Tolerance:EN 12020-2
-
5Gaskets:EPDM / EPDM Foam
-
6Chamber:Compatible with multiple locking mechanisms
-
7Glazing Thickness:5-38mm
-
10Thermal- Break:16 mm, 18 mm, 19mm (PA 6.6, 25%GF)
-
11Air Permeability:Double sash window 1.40m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000), Single sash window 1.00m Χ 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000)
-
12Thermal transmittance coefficient:3.3 W/(m2K) (EN 10077-2:2003-10)
-
13Water Tightness:Double sash window 1.40m X 2.20m: Class 9A (EN 1027:2000 / EN 12208:2000), Single sash window 1.00m Χ 2.20m: Class E750 (EN 1027:2000 / EN 12208:2000)
-
14Frame dimensions:Width 51.9mm, height 44-55 mm
-
15Sash dimensions:Width 60.4mm, height 64.1-94mm
-
24Resistance to wind load:Double sash window 1.40m X 2.20m: Class C3/B4 (EN 12211:2000 / EN 12210:2000), Single sash window 1.00m Χ 2.20m: Class C3 (EN 12211:2000 / EN 12210:2000)
To view the Certificates, you must be a registered user. To register clickhere.
If you are a registered user, please login(scroll to the top of the page).
